Smart IR Med-Evac Landing Zone Kit

Smart IR Med-Evac Landing Zone Kit

With all the red, blue and white flashing lights at an emergency scene the pi-lit® Landing Zone kit LED’s stand out in stark relief as flashing green. This enables the pilot to immediately see the obstacle-free LZ site. Low profile units that do not get blown away by the copter’s rotowash like cones do.

pi-lit® LZ Kit includes 5 radio-linked flares with both visible and infra-red LEDs. The flares are placed at the corners of a 100 foot (30 meter) square with one placed outside to designate wind direction OR inverted “Y” free of obstacles.

The flares flash in unison to create an identifiable “constellation” of either infra-red or visible flashing points. The operator may use any one of the 5 flares to control the entire group, changing from visible to infra-red with the push of a button.

For volume pricing and information

Give us a call at +1 (949)415-9411 or fill out the form below.

Smart IR Med-Evac Landing Zone Kit In Action

pi-lit® guides pilots too!

Drivers have no choice in traffic guidance technology. But pilots do and they choose pi-lit® Technology for their critical landing guidance.

Features and Specifications

Professional Rechargeable

Is your department or agency frequently setting up air ambulance rotary wing landing zones? The Rechargeable IR MedEvac Landing Zone Kit is designed to be plugged in and charging 24×7 365 days of the year. This ensures your LZ Kit it always ready to go when called into action.

  • Powered by Lithium-Ion Rechargeable Battery

  • 6 hour recharge time from a completely dead battery

  • Standard configuration includes 16 High-Power Visible Green LEDs, 4 High-Power Infrared LEDs (880nm)

  • 36+ hours of continuous flash

  • Coordinated flashing pattern for easy recognition

  • Battery status check with push of a button

  • IP68 water and dust rating

  • +35,000 lbs (15,800 kg) crush strength

Purchase include

Carrying/Charging case, 5 Radio-Connected LZ Flares, 5 Ballasted Range Extender Bases, DC 12/24V Vehicle Plug, 110/240V Wall plug

Features and Specifications

Alkaline Battery

The Alkaline MedEvac Landing Zone Kit it perfect for the department or agency who are called into action to demarcate a clear landing site for an air ambulance a few times in a year.

  • Powered by 4 AA-Alkaline Batteries (Included)

  • Battery Status Check with a push of a button

  • Standard configuration includes 16 High-Power Visible Green LEDs, 4 High-Power Infrared LEDs (880nm)

  • Coordinated flashing pattern for easy recognition



  • 36+ hours of continuous flash

  • Autonomic synchronization of LZ Flares (quick, easy, and safe deployment)

  • Two Distinct Flash Patterns: Simultaneous “Roll On-Roll Off”, Steady-Glow

  • +35,000 lbs (15,800 kg) crush strength

  • IP68 Water and Dust Rating

Purchase Includes

Carrying case, 5 Radio-Connected LZ Flares, 5 Ballasted Range Extender Bases, AA-Alkaline Batteries Installed

Additional Specifications

Strength

+35,000 lbs (15,800 kg) crush strength

Flare Spec Size

Weight = .5 lbs
L = 4.25 in, W = 3.5 in, H = 1 in

IP68

IP68 Water and Dust Rating

2-Year Warranty

2-Year Manufacturer’s Warranty

Two Distinct Flash Patterns

Keep it simple. A simple press of a button changes between a 1-per-second flash pattern or constant-glow (steady burn). Or press the other button to choose infrared; visible; or both.

Simultaneous “Roll On-Roll Off”

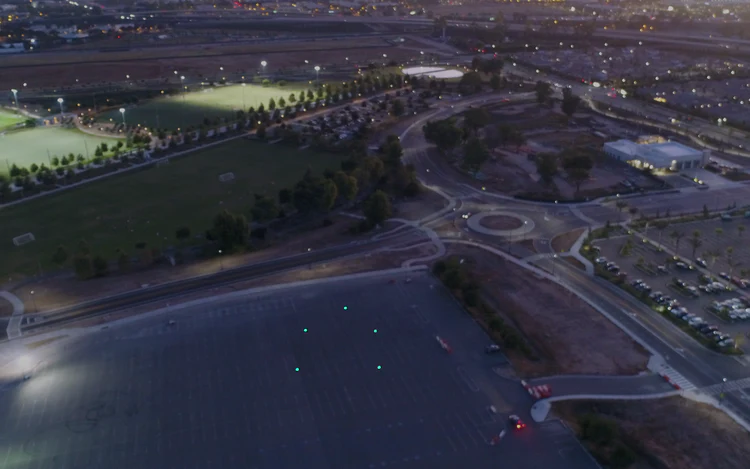

Steady-Glow

A “Constellation” effect

pi-lit®’s Smart LZ Flares are radio connected and flash in unison, creating a larger, easily identifiable area for the pilot to see. With a cacophony of police, fire, and ambulance lights in close proximity, pilots rely on pi-lit® Smart LZ Kit for a safe landing.

  • Automatic Synchronization of LZ Flares
  • Ballasted Range Extender provides range of 100+ ft to meet landing zone specifications
  • Ground crew can set the LZ flares to flash in “unison” or “steady-burn”
  • Easy to deploy, low cost, and enhanced safety.
  • Worker safety is not by accident. Sequential guidance is one tool in a system designed to bring your crew home safely each night.

Dual LED Modes: Visible and Infrared

Each LZ flare is equipped with visible green and infrared LEDs. For pilots who prefer to use Night Vision Goggles, the ground crew can use any one flare to activate the Infrared LEDs to flash on all the flares. This helps to guide pilots safely to the clear landing zone.

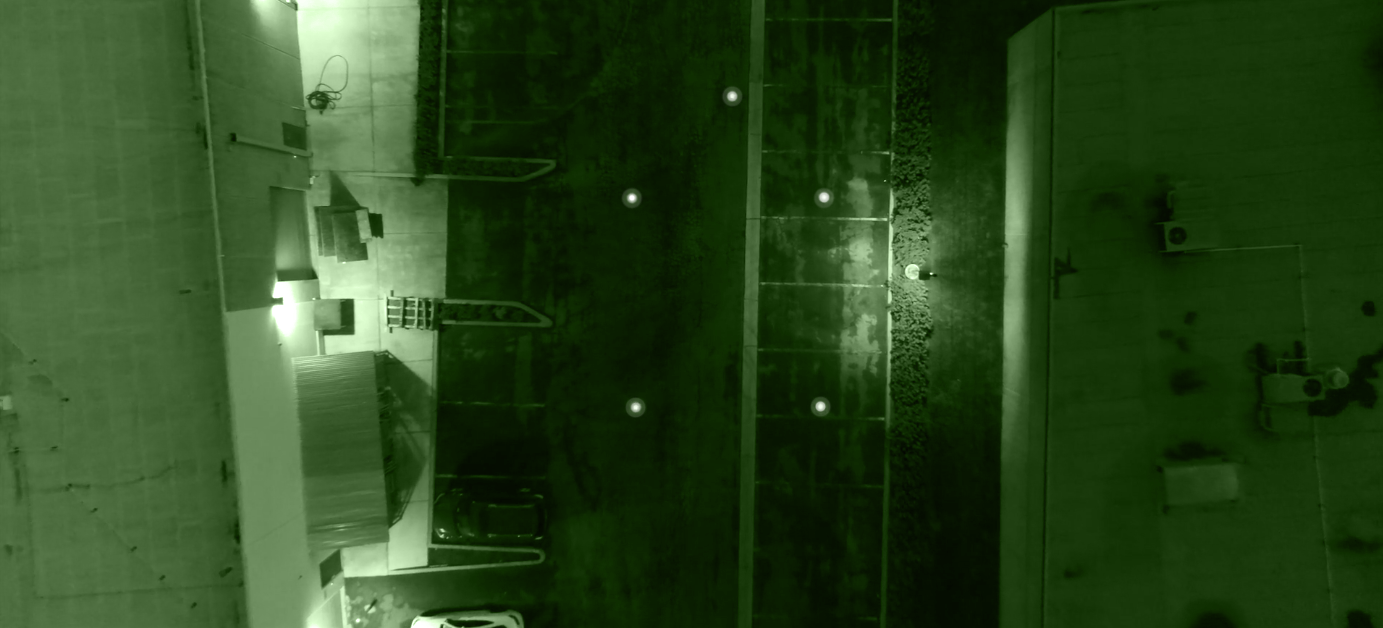

Visible LED FlashInfrared(NVG) LED Flash

Store and Charge your Smart IR Med-Evac Landing Zone Kit

The pi-lit® Flare Docking Station bolts down to your vehicle, and the Smart IR Med-Evac Landing Zone Kit will snap into place and start charging after every use. Know that your flares are ready to go and where they are.
