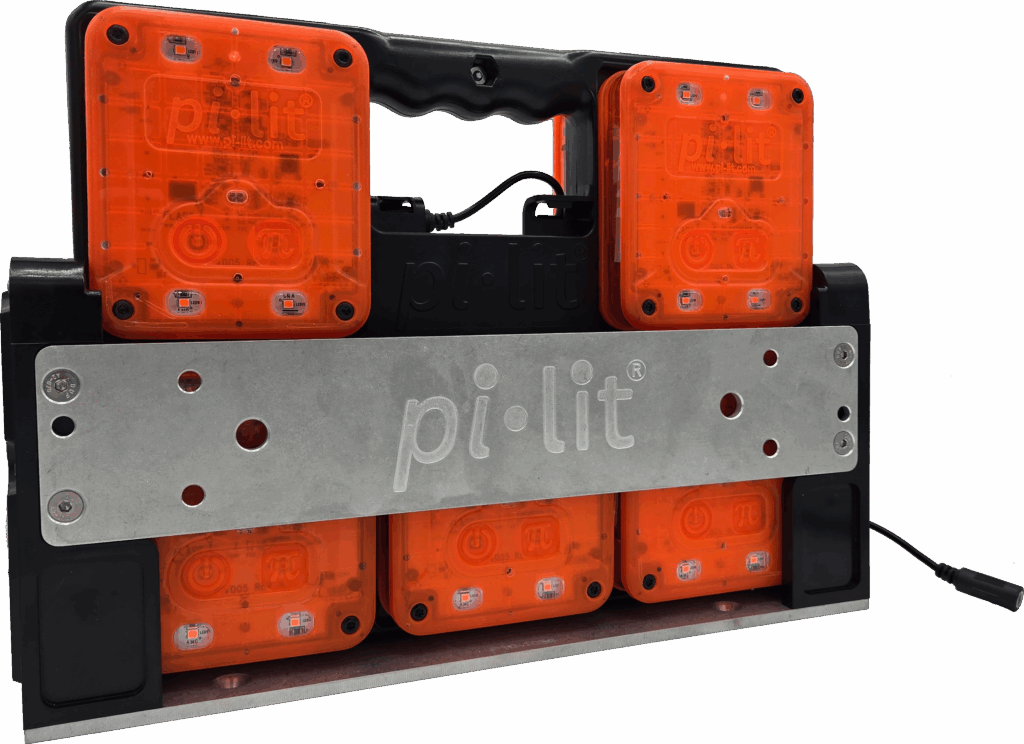

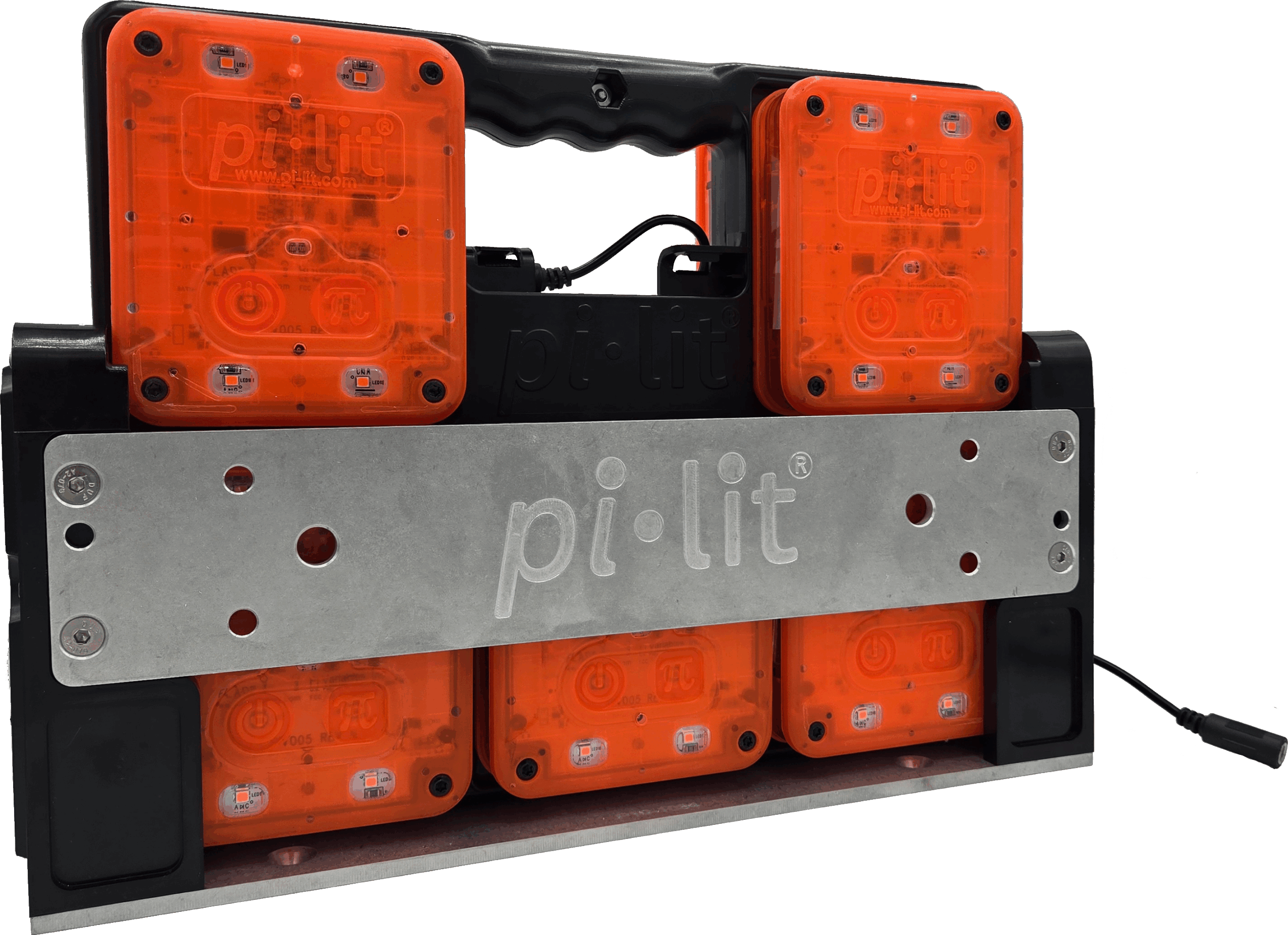

Docking Station with 10-Set of Flares

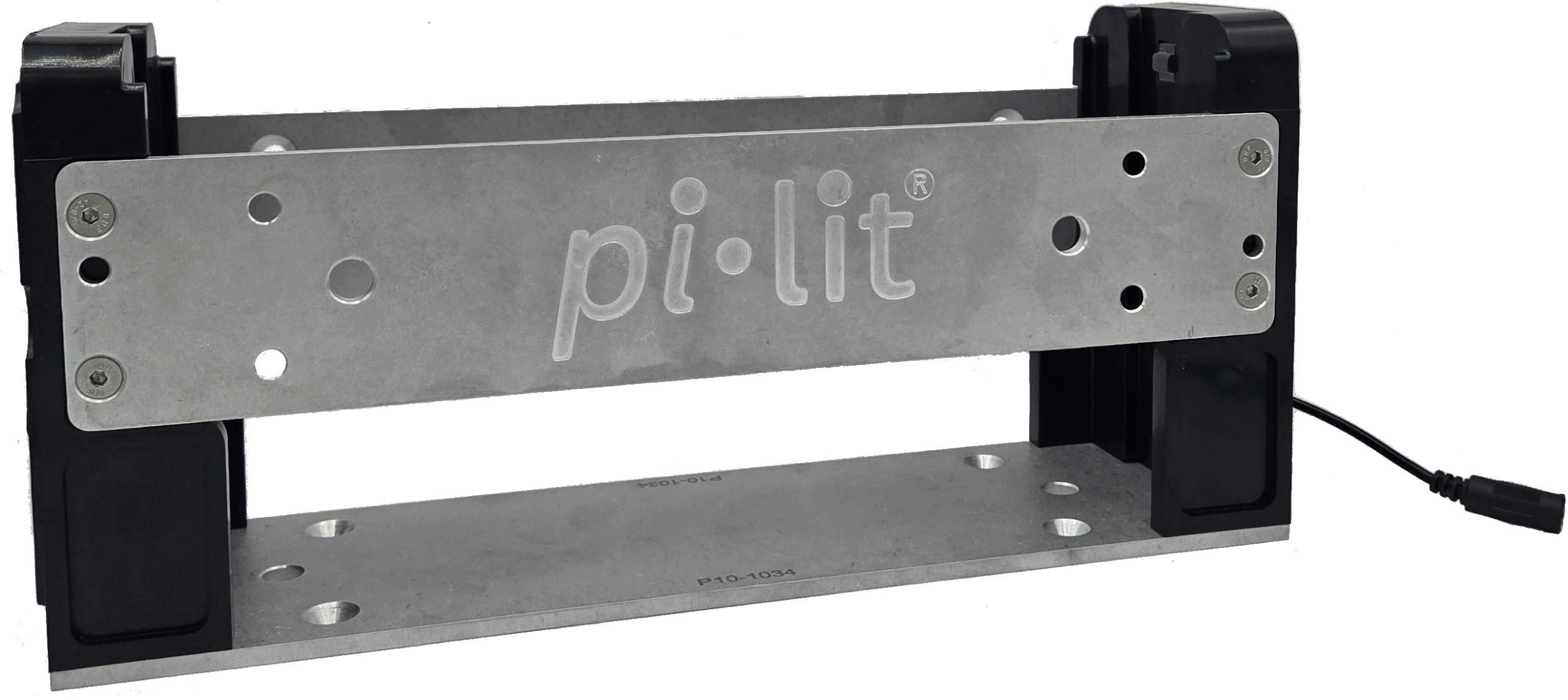

Docking Station for a 10-Set of Flares

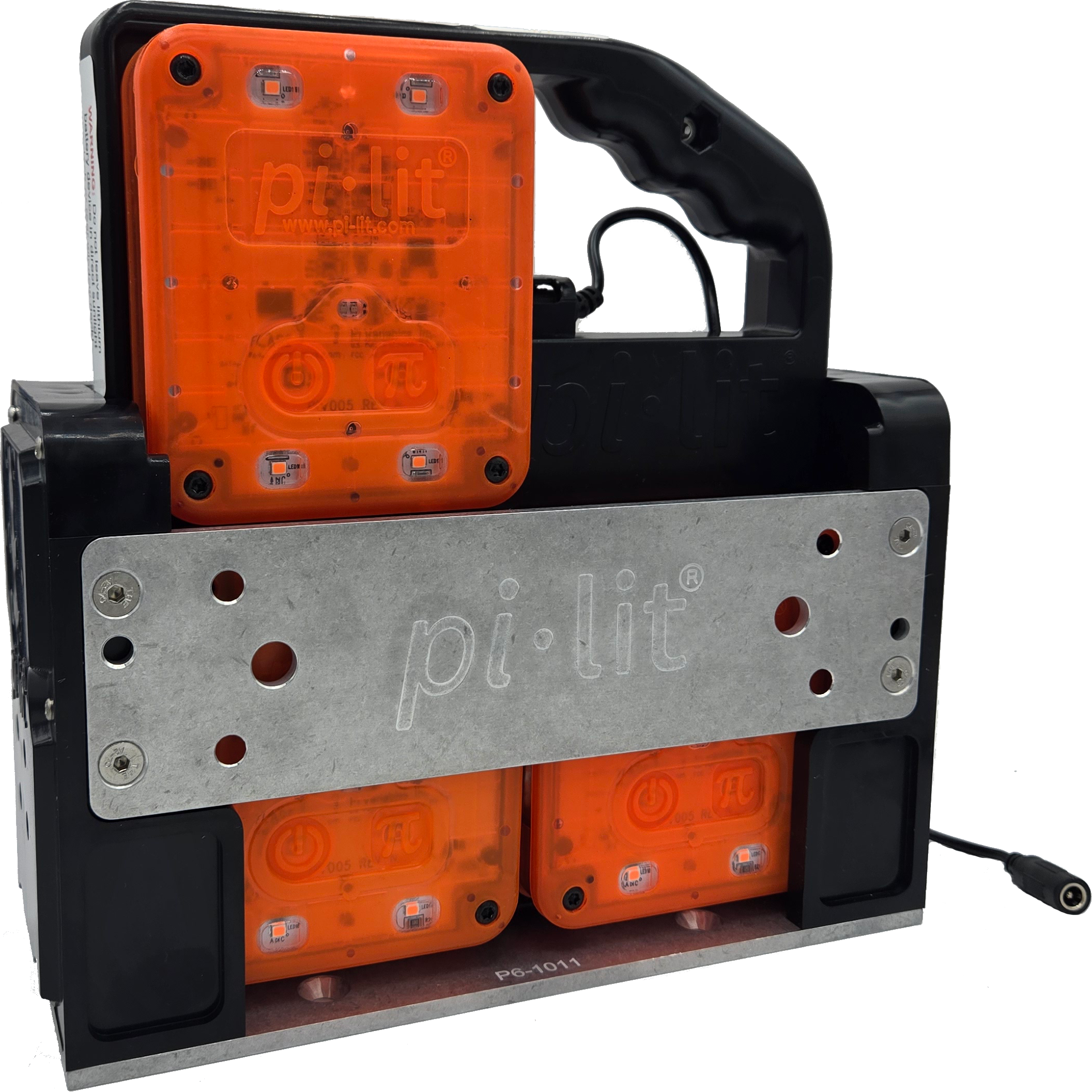

Docking Station with 6-Set of Flares

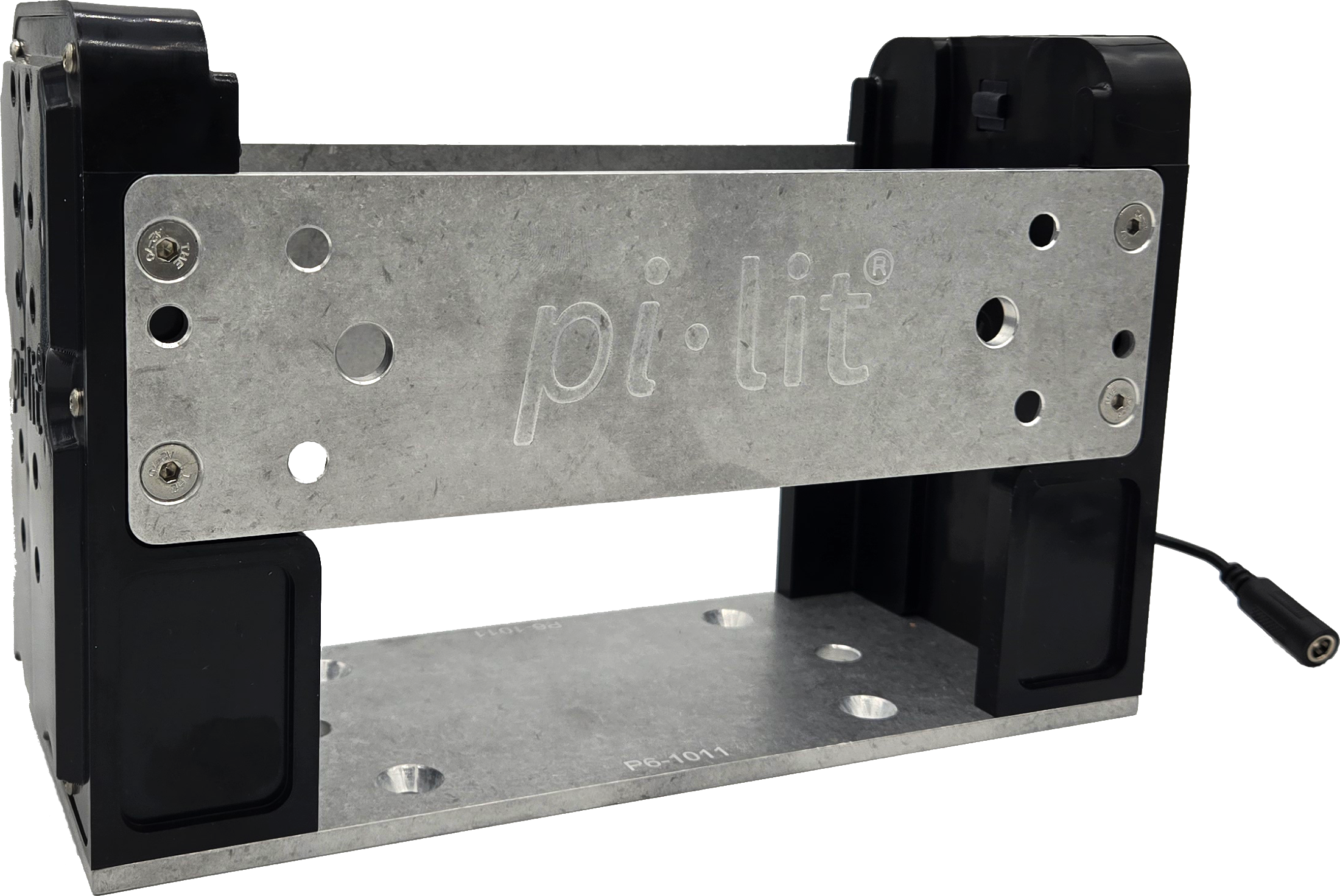

Docking Station for a 6-Set of Flares

Docking Station

The pi-lit® Flare Docking Station bolts down to your vehicle, and the Smart Sequential Flares will snap into place and start charging after every use. Know that your flares are ready to go and where they are.

For volume pricing and information

Give us a call at +1 (949)415-9411 or fill out the form below.

Additional Specifications

10-Set Size (with flares docked)

Height: 9.63 in.
Length: 13.38 in.
Width: 3.63 in.
Mounting Hardware: 1/4-20 x 3/4 Flat Head Socket Cap Screws

6-Set Size (with flares docked)

Height: 9.63 in.
Length: 9.25 in.
Width: 3.63 in.
Mounting Hardware: 1/4-20 x 3/4 Flat Head Socket Cap Screws

Voltage

DC 12/24V car charger plug or
110/220 volt AC wall charger plug

2-Year Warranty

2-Year Manufacturer’s Warranty

We’ve designed the perfect road safety solution to warn and guide drivers while being able to sustain multiple drive overs. Safe, reliable, rugged, and smart!

Features and Specifications

Professional Rechargeable

Will you use these more than once a week? Then you’ll need a rechargeable professional set. Used by law enforcement, fire brigades, utility companies, road assistance services, municipalities, and Departments of Transportation.

  • Gravity controlled light output: Tilt sensor automatically directs light output to optimize approaching driver awareness

  • RDS™ (Rapid Deployment System): Automatically turns on flare when removed from the case (Winter gloves? No problem. No buttons.)
  • “Pair” mode system allows for single or multiple sets to be synchronized

  • User default stored in memory. Preferred pattern, deployment order, tilt gravity sensor, and more are saved in memory for next deployment.

  • 6 hour recharge time from a completely depleted battery

  • Battery status check with press of a button.

  • Automatic synchronization of flares; No programming, no pre-numbering; turn on and deploy; That Easy!

  • 20+ hour runtime (flash pattern dependent)

  • 4 flash patterns to choose from (2 sequential, 1 simultaneous, 1 steady-burn)

  • Reverse sequence mode: reverse the direction of sequence with a button press (can be deployed walking with or towards traffic flow)

  • Charge all flares simultaneously (using dual purpose carrying case)

  • Powered by Lithium-ion rechargeable battery (1500 fully depleted charge cycles)

Kit includes:

Carrying/Charging Case, DC 12/24V Vehicle Plug, AC 110/240V Wall Plug, 2 Year  Warranty

Available In:

Set of 10 , Set of 6 and Set of 4

Features and Specifications

Commuter Alkaline Battery

Commuter model is designed for the infrequent deployment user. The trucker or road trip loving family where in the event of a unfortunate flat tire, the sequential safety flares are there, ready to go, to keep you safe.

  • Gravity light activation mode: Automatically selects side mounted LED flash or top mounted LED flash based on orientation. Increased visibility
  • Memory parameters feature: Preferred pattern, deployment order, and gravity activation mode settings are saved into memory for next deployment
  • “Pair” mode communication design allows for on the go syncing of multiple sets or independent sequential strings to be deployed
  • Powered by 4 off-the-shelf Alkaline AA batteries (included)
  • Battery status check with push of a button
  • Automatic synchronization of flares; No programming, no pre-numbering; turn and deploy; That Easy!
  • 24+ Hour of runtime (continued flash)

  • 4 flash patterns to choose from (2 sequential, 1 simultaneous, 1 steady-burn)

  • Reverse sequence mode: reverse the direction of sequence with a push of a button (can be deployed in the reverse order)
  • IP67 water and dust rating
  • 50,000 lbs. (20,600 kg) crush strength (lab tested and certified)

Kit includes:

Carrying case, AA-Alkaline batteries installed, 2-year warranty

Available In:

Set of 10 , Set of 6 and Set of 4

piLINK™ Vehicle to Cloud Safety Technology

Paving the way for REVOLUTIONARY travel safety, pi-link™ now seamlessly integrates with public mapping giants like Waze, Apple Maps, and Traffic Management Centers worldwide!

Using the power of pi-lit®’s robust network, the MOMENT our Smart Sequential Flares hit the ground, pilink™ jumps into action, sending DIGITAL ALERTS directly to these mapping systems.

  • Digital Alerts: Advanced warning digital alerts
  • Fleet Reports: Activation, duration, location reporting
  • Digital and Visual Alerts: A combination of alerts to bring road professionals home safely each night
  • WZDx Compliant: Automatically pull data into ITS and TMC systems
  • Automatic: Activates upon smart flare deployment, Deactivates on vehicle departure

Accessory

Sequential Flare Cone Adapters

pi-lit® universal 360 cone adapter is designed to fit to any standard traffic cone. Using its ribbed design, the cone adapter fits securely to the traffic cone and brings more visibility to the sequential flares. The sequential flares magnetically attach to the cone adapter for ease of deployment. With 3 positions to mount, the user can create a 360 degree warning device or a uni-directional warning lamp. (Sold in sets of 4,6, or 10 and includes carrying satchel)

Features and Specifications

  • Flares strong magnet makes deployment easy

  • Fits any cone (except collapsible cloth cones)

  • Allows flares to be deployed as a 360 degree warning lamp or a Uni-Directional warning lamp

  • Increase range for sequential flare to flare communication (1,000 ft)

Fleet or Volume Inquiries

Give us a call at +1 (949)415-9411 or fill out the form below.
